Zabbix provides powerful alerting features, and customizing email templates can significantly improve readability and response efficiency. Below is a fully styled HTML email template tailored for modern alerts with branding and visual enhancements.
Key Edits Before Deployment
Before using this template, make sure to update the following parts:
Replace all instances of zabbix_server with an actual Zabbix server hostname or IP. There are 4 instances of the zabbix_server string on the html template:
<a href="http://zabbix_server/zabbix/tr_events.php?triggerid={TRIGGER.ID}&eventid={EVENT.ID}" class="button button-primary">View Event Details</a>
<a href="http://zabbix_server/zabbix/history.php?action=showgraph&itemids%5B%5D={ITEM.ID}" class="button button-secondary">View Event Graph</a>
<p><a href="https://zabbix_server" style="color: #4a6bff; text-decoration: none;">https://zabbix_server</a></p>
Replace the company name in the title tag and footer paragraph tag
<title>{{ Company_Name }} Monitoring Alert</title>
<p>This is an automated alert from Company_Name System. Please do not reply to this email.</p>
Replace the company logo path and alt text in the image tag of logo-header section
<img src="https://company.com/logo_path" alt="company_logo" class="logo" />
Set the email subject to the following format for clarity:
[{HOST.NAME}] {EVENT.NAME}
Features of the Template
- Responsive design with mobile support.
- Color-coded severity levels.
- Clean layout with key event and trigger details.
- Two action buttons: “View Event Details” and “View Event Graph”.
- Branding section for logo and footer message.
HTML Template Code
Below is the full HTML code.
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
<meta name="viewport" content="width=device-width, initial-scale=1.0" />
<title>{{ Company_Name }} Monitoring Alert</title>
<style type="text/css">
/* Reset styles for email clients */
body, p, div, h1, h2, h3, h4, h5, h6 {
margin: 0;
padding: 0;
}
body {
font-family: Arial, Helvetica, sans-serif;
line-height: 1.6;
color: #2d3436;
background-color: #f8fafc;
padding: 20px 0;
}
.container {
width: 100%;
max-width: 800px;
margin: 0 auto;
background-color: #ffffff;
border-radius: 12px;
-webkit-border-radius: 12px;
-moz-border-radius: 12px;
border: 1px solid #e2e8f0;
overflow: hidden;
}
.logo-header {
padding: 20px;
background-color: white;
border-bottom: 1px solid #e2e8f0;
text-align: center;
}
.logo {
max-height: 50px;
max-width: 180px;
height: auto;
}
.alert-header {
padding: 24px;
text-align: center;
background: #4a6bff;
background: -webkit-linear-gradient(135deg, #4a6bff 0%, #3a56cc 100%);
background: -moz-linear-gradient(135deg, #4a6bff 0%, #3a56cc 100%);
background: -o-linear-gradient(135deg, #4a6bff 0%, #3a56cc 100%);
background: linear-gradient(135deg, #4a6bff 0%, #3a56cc 100%);
color: white;
}
.alert-header h1 {
margin: 0;
font-size: 22px;
font-weight: bold;
letter-spacing: 0.5px;
}
.content {
padding: 28px;
}
.alert-details {
background-color: #f1f2f6;
border-left: 4px solid #4a6bff;
padding: 18px;
margin-bottom: 24px;
border-radius: 0;
-webkit-border-radius: 0 8px 8px 0;
-moz-border-radius: 0 8px 8px 0;
}
.severity-High {
border-left-color: #ff4757;
background-color: #fdecea;
}
.severity-Average {
border-left-color: #ffa502;
background-color: #fff3e8;
}
.severity-Warning {
border-left-color: #ffc107;
background-color: #fff9e6;
}
.severity-Information {
border-left-color: #1e90ff;
background-color: #e8f6f8;
}
.severity-not-classified {
border-left-color: #636e72;
background-color: #f8f9fa;
}
.detail-row {
margin-bottom: 12px;
overflow: hidden;
}
.detail-label {
font-weight: bold;
width: 140px;
float: left;
color: #636e72;
font-size: 14px;
}
.detail-value {
margin-left: 140px;
font-size: 14px;
}
.severity-badge {
display: inline-block;
border-radius: 12px;
-webkit-border-radius: 12px;
-moz-border-radius: 12px;
letter-spacing: 0.5px;
}
.badge-High {
color: #ff4757;
}
.badge-Average {
color: #ffa502;
}
.badge-Warning {
color: #ffc107;
}
.badge-Info {
color: #1e90ff;
}
.badge-default {
color: #636e72;
}
.button-container {
margin-top: 28px;
}
.button {
display: block;
padding: 12px 24px;
border-radius: 8px;
-webkit-border-radius: 8px;
-moz-border-radius: 8px;
text-decoration: none;
font-weight: bold;
text-align: center;
margin-bottom: 16px;
font-size: 14px;
border: 1px solid #4a6bff;
}
.button-primary {
background-color: #4a6bff;
color: white;
}
.button-secondary {
background-color: white;
color: #4a6bff;
}
.footer {
text-align: center;
padding: 20px;
font-size: 12px;
color: #636e72;
border-top: 1px solid #e2e8f0;
background-color: #f8fafc;
}
.timestamp {
font-size: 15px;
color: #636e72;
margin-bottom: 20px;
text-align: right;
font-weight: bold;
}
.value-display {
font-size: 18px;
font-weight: bold;
color: #2d3436;
padding: 16px;
background-color: #f1f2f6;
border-radius: 8px;
-webkit-border-radius: 8px;
-moz-border-radius: 8px;
text-align: center;
margin: 20px 0;
border: 1px dashed #cbd5e1;
}
.event-description {
font-size: 15px;
margin: 16px 0;
padding: 16px;
border-left: 4px solid #4a6bff;
background-color: #f1f2f6;
border-radius: 0;
-webkit-border-radius: 0 8px 8px 0;
-moz-border-radius: 0 8px 8px 0;
line-height: 1.7;
}
.event-value {
font-size: 14px;
color: #636e72;
margin-top: 8px;
font-weight: bold;
}
/* Mobile styles */
@media screen and (max-width: 640px) {
.container {
border-radius: 0;
-webkit-border-radius: 0;
-moz-border-radius: 0;
border-left: none;
border-right: none;
}
.detail-label {
width: 100%;
float: none;
margin-bottom: 4px;
}
.detail-value {
margin-left: 0;
}
.content {
padding: 20px;
}
}
</style>
</head>
<body>
<!--[if (gte mso 9)|(IE)]>
<table width="800" align="center" cellpadding="0" cellspacing="0" border="0">
<tr>
<td>
<![endif]-->
<div class="container">
<!-- Company Logo Section -->
<div class="logo-header">
<img src="https://company.com/logo_path" alt="company_logo" class="logo" />
</div>
<div class="content">
<div class="timestamp">
{EVENT.DATE} {EVENT.TIME} UTC
</div>
<div class="event-description">
{EVENT.NAME}
<div class="event-value">
Trigger Value: {EVENT.OPDATA}
</div>
</div>
<div class="alert-details severity-{EVENT.SEVERITY}">
<div class="detail-row">
<div class="detail-label">Host Name:</div>
<div class="detail-value">{HOST.NAME}</div>
</div>
<div class="detail-row">
<div class="detail-label">Host IP:</div>
<div class="detail-value">{HOST.IP}</div>
</div>
<div class="detail-row">
<div class="detail-label">Severity:</div>
<div class="detail-value">
<span class="severity-badge badge-{EVENT.SEVERITY}">{EVENT.SEVERITY}</span>
</div>
</div>
<div class="detail-row">
<div class="detail-label">Status:</div>
<div class="detail-value">{EVENT.STATUS}</div>
</div>
<div class="detail-row">
<div class="detail-label">Duration:</div>
<div class="detail-value">{EVENT.AGE}</div>
</div>
<div class="detail-row">
<div class="detail-label">Acknowledged:</div>
<div class="detail-value">{EVENT.ACK.STATUS}</div>
</div>
</div>
<div class="value-display">
Latest Value: <strong>{ITEM.VALUE}</strong>
</div>
<div class="event-description">
{TRIGGER.DESCRIPTION}
</div>
<div class="button-container">
<a href="http://zabbix_server/zabbix/tr_events.php?triggerid={TRIGGER.ID}&eventid={EVENT.ID}" class="button button-primary">View Event Details</a>
<a href="http://zabbix_server/zabbix/history.php?action=showgraph&itemids%5B%5D={ITEM.ID}" class="button button-secondary">View Event Graph</a>
</div>
</div>
<div class="footer">
<p>This is an automated alert from Company_Name System. Please do not reply to this email.</p>
<p><a href="https://zabbix_server" style="color: #4a6bff; text-decoration: none;">https://zabbix_server</a></p>
</div>
</div>
<!--[if (gte mso 9)|(IE)]>
</td>
</tr>
</table>
<![endif]-->
</body>
</html>

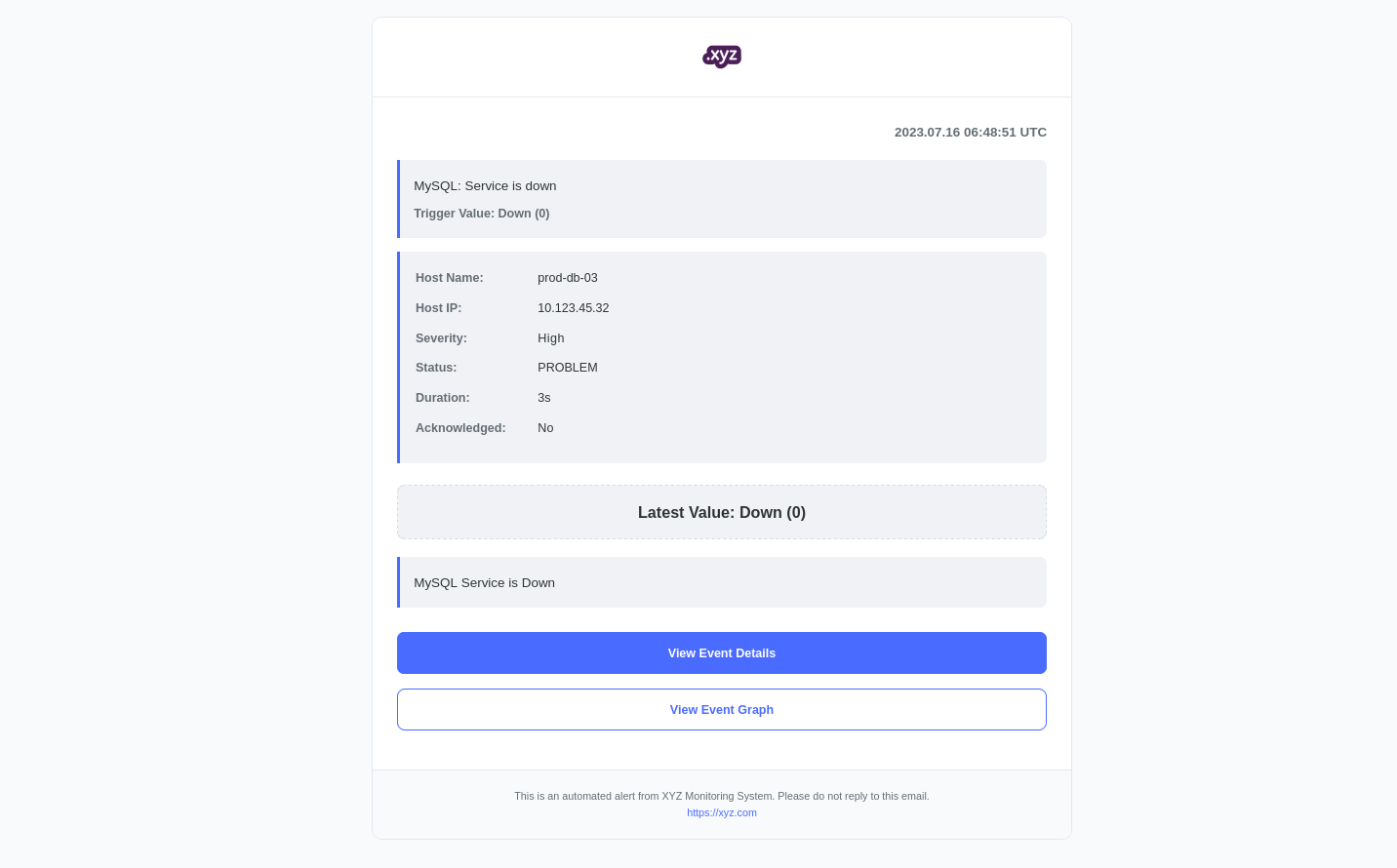

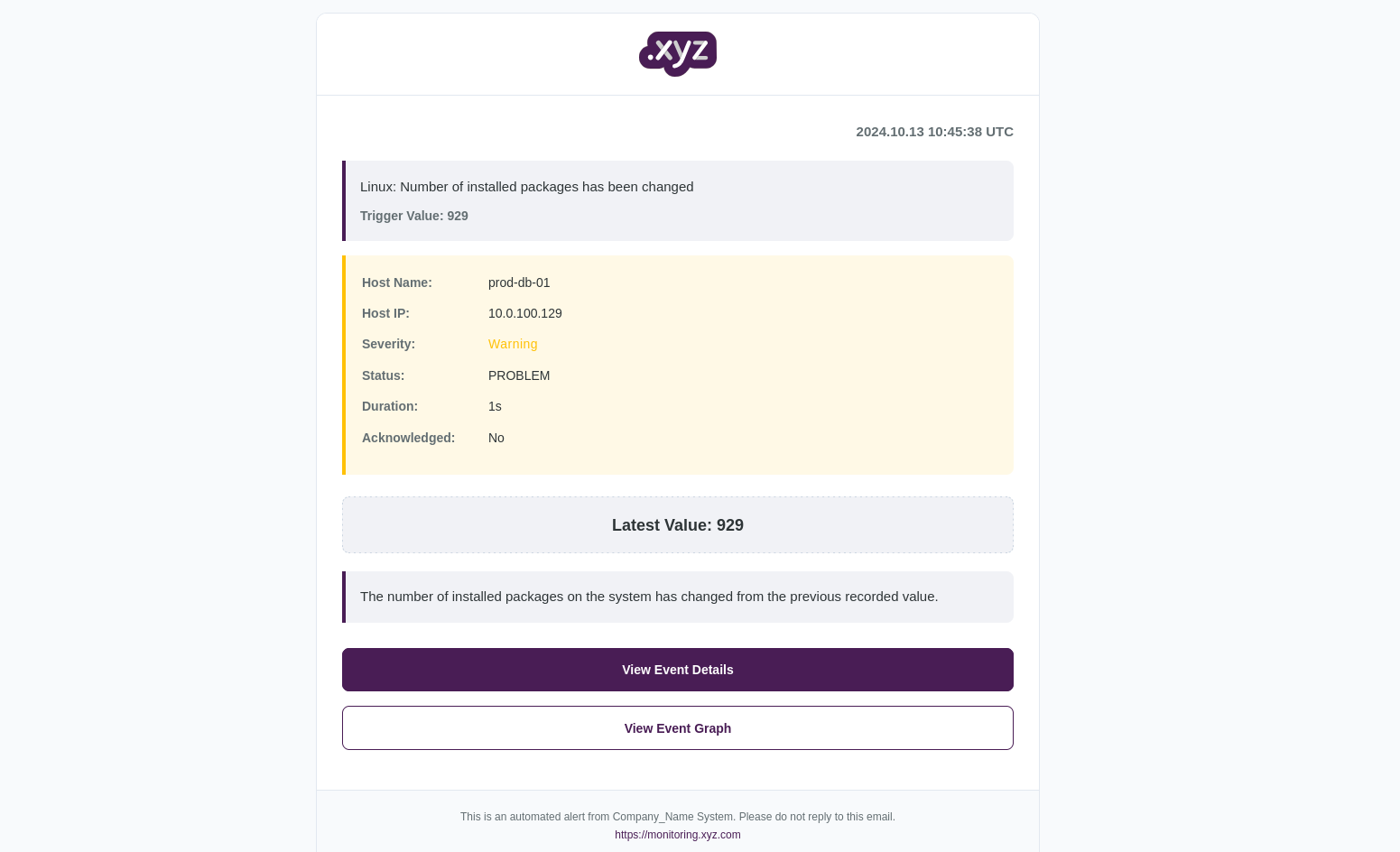

Example Output
Here’s what your alert email might look like:
